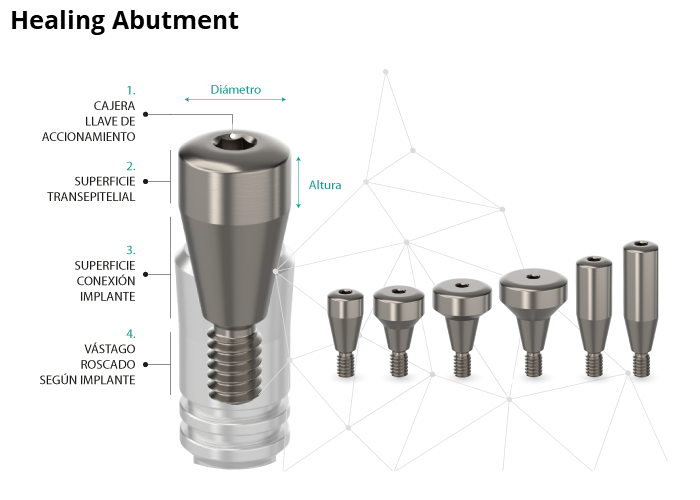

Healing Abutment

HEALING ABUTMENT


MATERIAL

The Healing Abutment of Gt-Medical is made of Titanium Grade 5 with a mirror micro-polished finish to prevent bacterial plaque adhesion while facilitating the perimetral growth of the gingival mucosa.


GEOMETRY

The connection surface of the Gt-Medical Healing Abutment with the implant has been rigorously designed with the original measurements of the corresponding implant, offering a machining tolerance never greater than +/-0.01mm and a shaft with the corresponding implant thread.

The transepithelial surface has a height that varies between 1mm and 5mm depending on the implant model. The emergence diameter is variable depending on the tooth to be rehabilitated.

The key to tighten the screw can be of various types depending on the implant system used.

G01138
Gingiva Height: 2.5mm
Driver: Hex 1.25
Diameter: 4.0mm
G01111
Gingiva Height: 3.5mm
Driver: Hex 1.25
Diameter: 5.5mm
G01112
Gingiva Height: 3.5mm
Driver: Hex 1.25
Diameter: 6.5mm
G01113
Gingiva Height: 3.5mm
Driver: Hex 1.25
Diameter: 7.5mm
G01139
Gingiva Height: 4.5mm
Driver: Hex 1.25
Diameter: 4.0mm
G01114
Gingiva Height: 4.5mm
Driver: Hex 1.25
Diameter: 5.5mm
G01115
Gingiva Height: 4.5mm
Driver: Hex 1.25
Diameter: 6.5mm
G01116
Gingiva Height: 4.5mm
Driver: Hex 1.25
Diameter: 7.5mm
G01117
Gingiva Height: 5.5mm
Driver: Hex 1.25
Diameter: 5.5mm
G01118
Gingiva Height: 5.5mm
Driver: Hex 1.25
Diameter: 6.5mm
G01119
Gingiva Height: 5.5mm
Driver: Hex 1.25
Diameter: 7.5mm
G01140
Gingiva Height: 6.5mm
Driver: Hex 1.25
Diameter: 4.0mm
G01305
Gingiva Height: 6.5mm
Driver: Hex 1.25
Diameter: 5.5mm
G01306
Gingiva Height: 6.5mm
Driver: Hex 1.25
Diameter: 6.5mm
G01307
Gingiva Height: 6.5mm
Driver: Hex 1.25
Diameter: 7.5mm
G01141
Gingiva Height: 8.5mm
Driver: Hex 1.25
Diameter: 4.0mm
