Healing Abutment

HEALING ABUTMENT


MATERIAL

The Healing Abutment of Gt-Medical is made of Titanium Grade 5 with a mirror micro-polished finish to prevent bacterial plaque adhesion while facilitating the perimetral growth of the gingival mucosa.

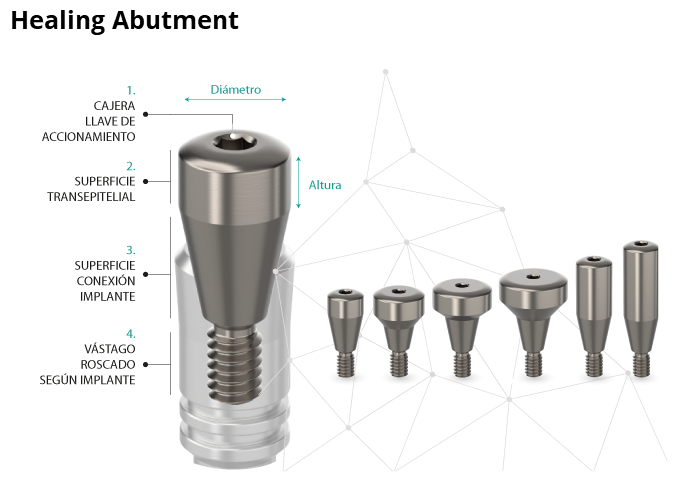

GEOMETRY

The connection surface of the Gt-Medical Healing Abutment with the implant has been rigorously designed with the original measurements of the corresponding implant, offering a machining tolerance never greater than +/-0.01mm and a shaft with the corresponding implant thread.

The transepithelial surface has a height that varies between 1mm and 5mm depending on the implant model. The emergence diameter is variable depending on the tooth to be rehabilitated.

The key to tighten the screw can be of various types depending on the implant system used.

G01622
Gingiva Height: 1.0mm
Driver: Hex 1.20
Diameter: 4.0mm
G01623
Gingiva Height: 2.0mm
Driver: Hex 1.20
Diameter: 4.0mm
G01629
Gingiva Height: 2.0mm
Driver: Hex 1.20
Diameter: 5.0mm
G01624
Gingiva Height: 3.0mm
Driver: Hex 1.20
Diameter: 4.0mm
G01630
Gingiva Height: 3.0mm
Driver: Hex 1.20
Diameter: 5.0mm
G01625
Gingiva Height: 4.0mm
Driver: Hex 1.20
Diameter: 4.0mm
G01631
Gingiva Height: 4.0mm
Driver: Hex 1.20
Diameter: 5.0mm
G01626
Gingiva Height: 5.0mm
Driver: Hex 1.20
Diameter: 4.0mm
G01632
Gingiva Height: 5.0mm
Driver: Hex 1.20
Diameter: 5.0mm
G01627
Gingiva Height: 6.0mm
Driver: Hex 1.20
Diameter: 4.0mm
G01633
Gingiva Height: 6.0mm
Driver: Hex 1.20
Diameter: 5.0mm
G01634
Gingiva Height: 8.0mm
Driver: Hex 1.20
Diameter: 5.0mm
